Nissan S13 S14 Clutch Master Cylinder Upgrade Kit - Silvia 240sx 200sx

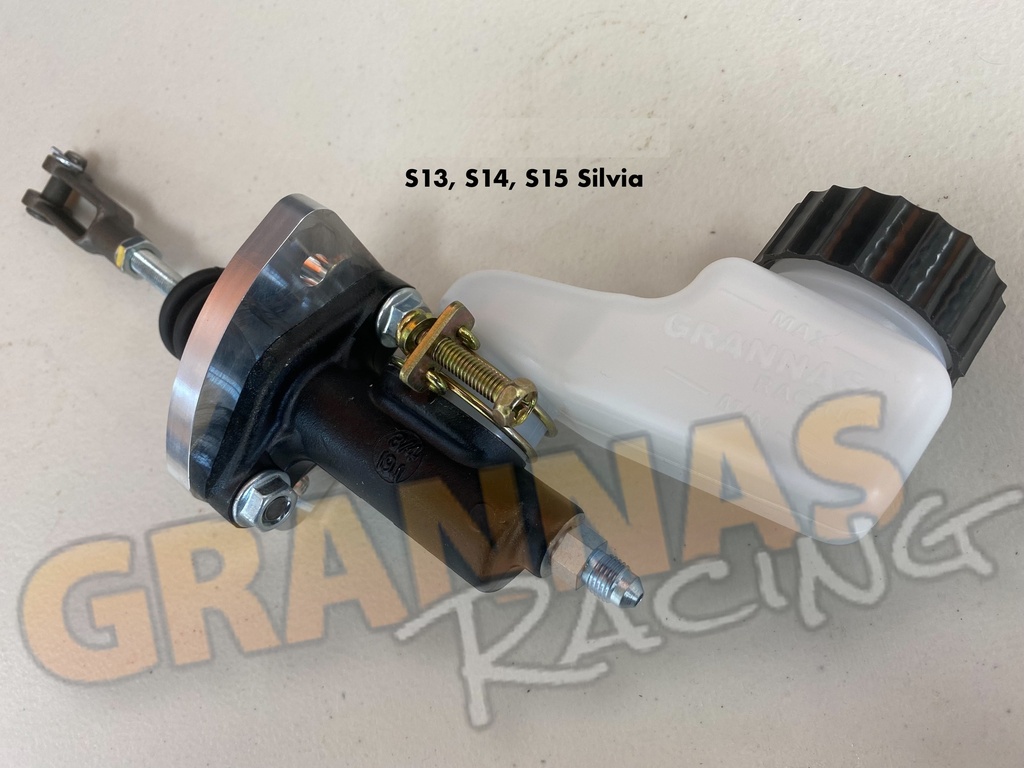

This billet adapter and larger bore clutch master cylinder will allow you to do a simple bolt-in installation.

This clutch master cylinder kit with billet adapter fits both LHD and RHD S13, S14 and S15 240SX and SILVIA. The kit comes with the Grannas Racing "RHD" angled reservoir. This is included to allow clearance of the body pinch seam on the firewall (see pictures). This will also fit rear wheel drive Skyline R32-R33-R34 GT-T/GTS-T cars.

This kit includes the following:

1. Tilton 75-series master cylinder (7/10", 3/4", 13/16", and 7/8" bore size available)
2. Grannas Racing Tilton "RHD" specific angled reservoir
3. Cap, clamp, 3AN union fitting
4. Billet adapter bracket
5. Hardware/studs for installation

I tried to add some pictures to show the difference in size and mounting versus the stock RHD master. There is plenty of clearance for even stock twin turbo setups!

PLEASE NOTE: On some chassis where the clutch pedal uses studs through the firewall you will be required to remove/drill out the stock studs on the clutch pedal assembly.

----

Here is the recommended master sizes for the most common clutches I sell. This is all based on using a Tilton hydraulic release bearing with these clutches:

7/10 bore:

OS Giken TR2CD, R3C or R4C

3/4 bore:

Comp Stage2, 3 and 4

Mcleod Single discs

RPS Carbon clutches

Tilton 7.25 Carbon clutches or OT-II metallic clutches

13/16 bore:

McLeod Twin discs (RST, RXT, RXT1200)

Tilton ST246 (both standard and HD version)
