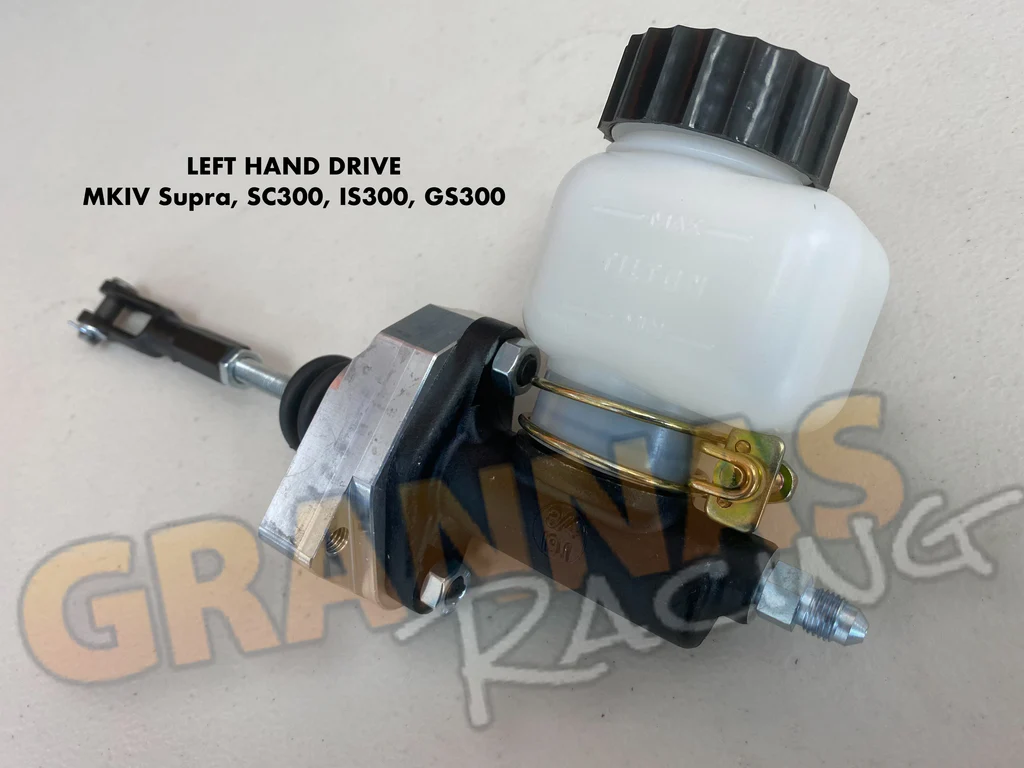

This billet adapter and larger bore clutch master cylinder will allow you to do a simple bolt-in installation.
There are LHD and RHD specific versions of this kit, please choose accordingly. The MKIV Supra kit will fit both the MKIV Supra and the Lexus SC300 / Toyota Soarer. This is also available for the Lexus IS300 Chassis / Altezza / IS200, and the Aristo / GS300 / GS400 as well!
This kit includes the following:
- Tilton 75-series master cylinder (7/10", 3/4", 13/16", and 7/8" bore size available)
- Reservoir, Cap, clamp, 3AN union fitting
- Billet adapter bracket
- Hardware/studs for installation
----
Here is the recommended master sizes for the most common clutches I sell. This is all based on using a Tilton hydraulic release bearing with these clutches:
7/10 bore:
OS Giken TR2CD, R3C or R4C
3/4 bore:
Comp Stage2, 3 and 4
Mcleod Single discs
RPS Carbon clutches
Tilton 7.25 Carbon clutches or OT-II metallic clutches
13/16 bore:
McLeod Twin discs (RST, RXT, RXT1200)
Tilton ST246 (both standard and HD version)
Specifications
| Drive Side | LHD (usdm) or RHD (jdm) |
| Bore Size | 7/10" or 3/4" or 13/16" or 7/8" |
