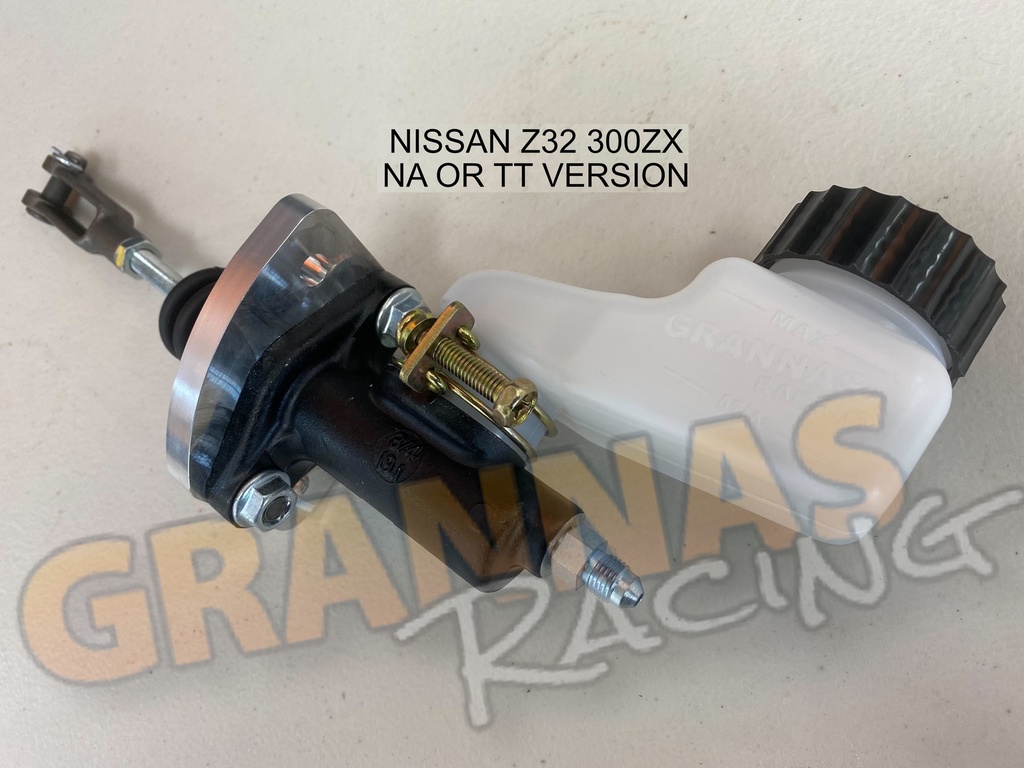

Nissan Z32 300ZX Clutch Master Cylinder Upgrade Kit
This billet adapter and larger bore clutch master cylinder will allow you to do a simple bolt-in installation.
This clutch master cylinder kit with billet adapter fits Z32 chassis. There are specific adapters that are for 300zx Non-Turbo and 300zx Twin-Turbo models so please choose accordingly.
This kit includes the following:
- Tilton 75-series master cylinder (7/10", 3/4", 13/16", and 7/8" bore size available)
- Grannas Racing Tilton "RHD" specific angled reservoir
- Cap, clamp, 3AN union fitting
- Billet adapter bracket
- Hardware/studs for installation
I tried to add some pictures to show the difference in size and mounting versus the stock RHD master. There is plenty of clearance for even stock twin turbo setups!
PLEASE NOTE: On some chassis where the clutch pedal uses studs through the firewall you will be required to remove/drill out the stock studs on the clutch pedal assembly.
----
Here is the recommended master sizes for the most common clutches I sell. This is all based on using a Tilton hydraulic release bearing with these clutches:
7/10 bore:
OS Giken TR2CD, R3C or R4C
3/4 bore:
Comp Stage2, 3 and 4
Mcleod Single discs
RPS Carbon clutches
Tilton 7.25 Carbon clutches or OT-II metallic clutches
13/16 bore:
McLeod Twin discs (RST, RXT, RXT1200)
Tilton ST246 (both standard and HD version)
Specifications
| Drive Side | LHD (usdm) or RHD (jdm) |
| Bore Size | 7/10" or 3/4" or 13/16" or 7/8" |
| Chassis | Non-Turbo Z32 or Twin-Turbo Z32 |
