This billet adapter and larger bore clutch master cylinder will allow you to do a simple bolt-in installation.
This clutch master cylinder kit with billet adapter fits Z33 chassis, for the 350Z and Infiniti G35.

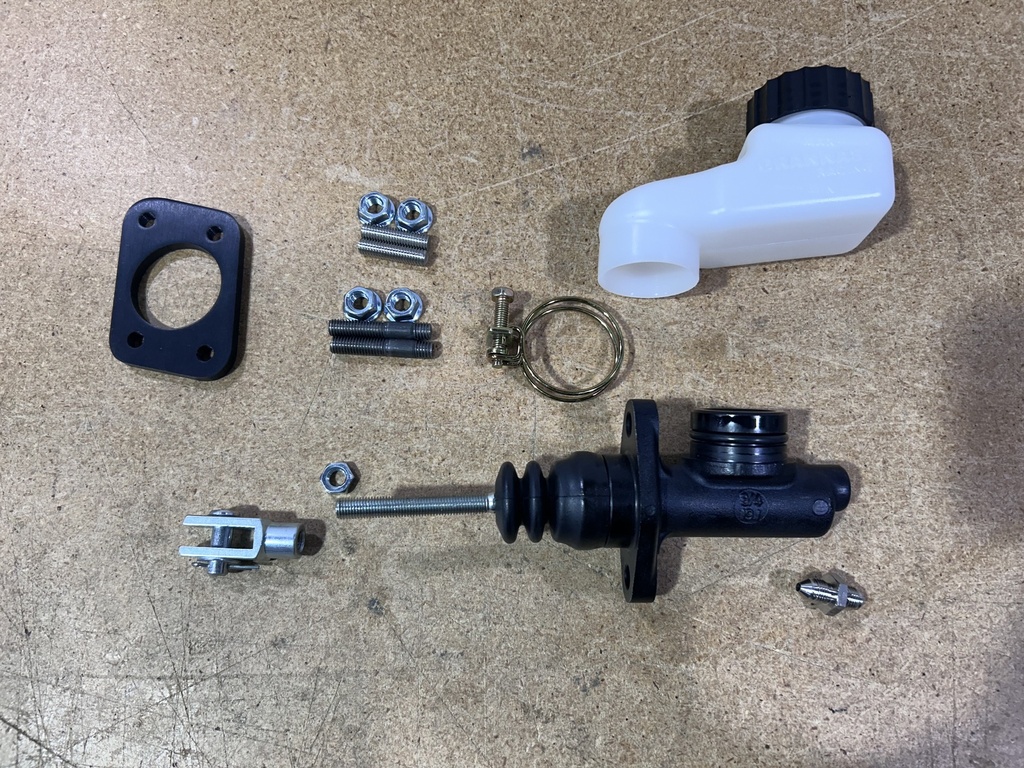

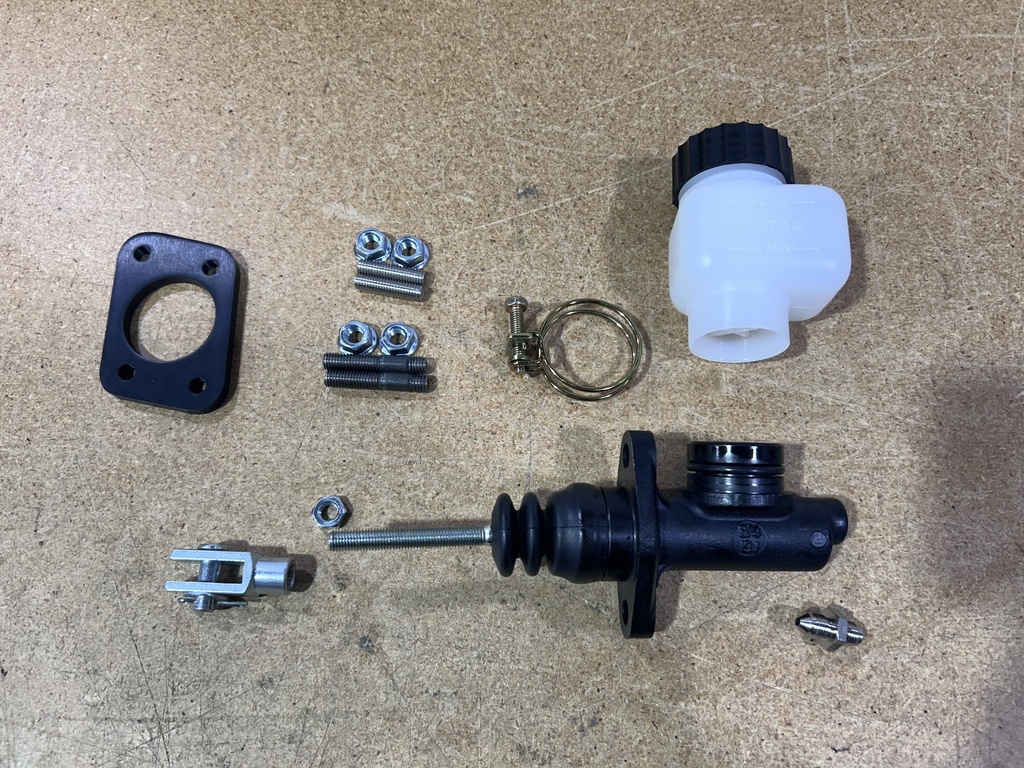

This kit includes the following:

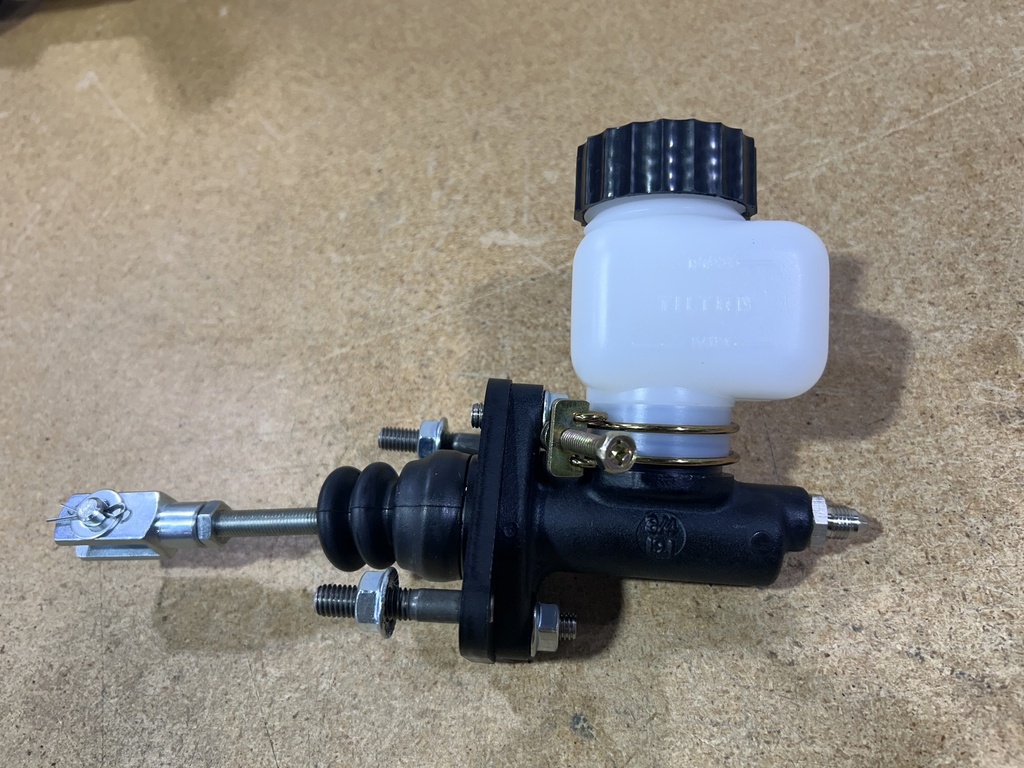

- Tilton 75-series master cylinder (7/10", 3/4", 13/16", and 7/8" bore size available)

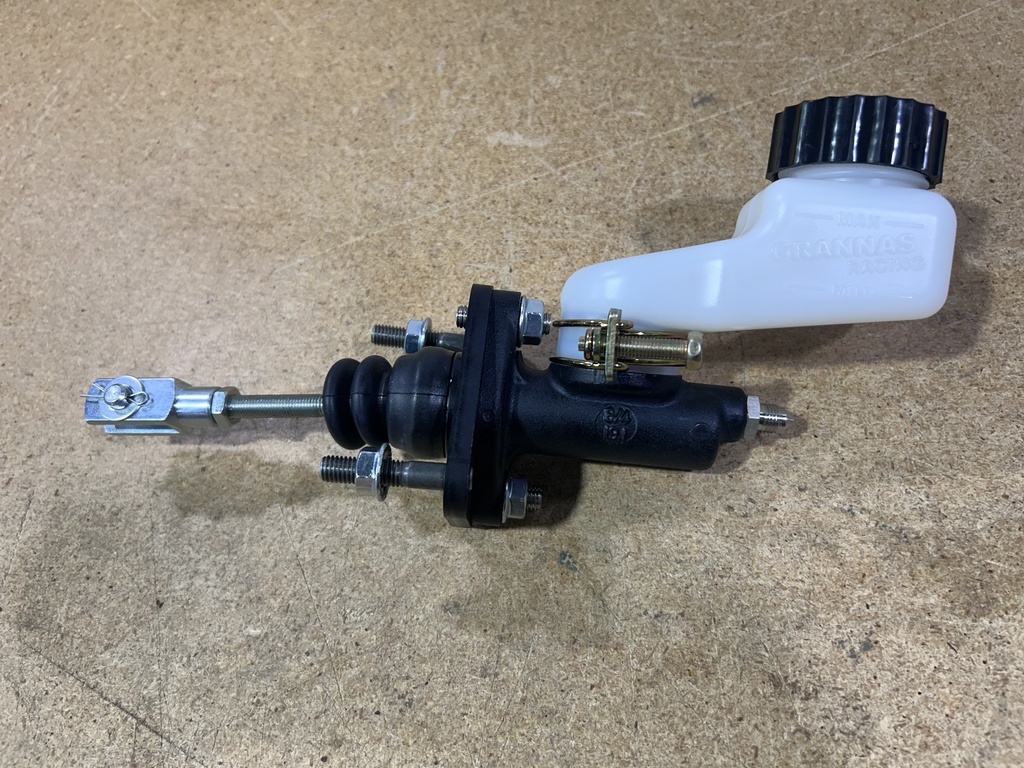

- Standard LHD reservoir or Grannas Racing Tilton "RHD" specific angled reservoir
- Cap, clamp, 3AN union fitting
- Billet adapter bracket
- Hardware/studs for installation
----
Here is the recommended master sizes for the most common clutches I sell. This is all based on using a Tilton hydraulic release bearing with these clutches:
7/10 bore:
OS Giken TR2CD, R3C or R4C
3/4 bore:
Comp Stage2, 3 and 4
Mcleod Single discs
RPS Carbon clutches
Tilton 7.25 Carbon clutches or OT-II metallic clutches
13/16 bore:
McLeod Twin discs (RST, RXT, RXT1200)
Tilton ST246 (both standard and HD version)
Specifications
| Drive Side | LHD (usdm) or RHD (jdm) |
| Bore Size | 7/10" or 3/4" or 13/16" or 7/8" |
