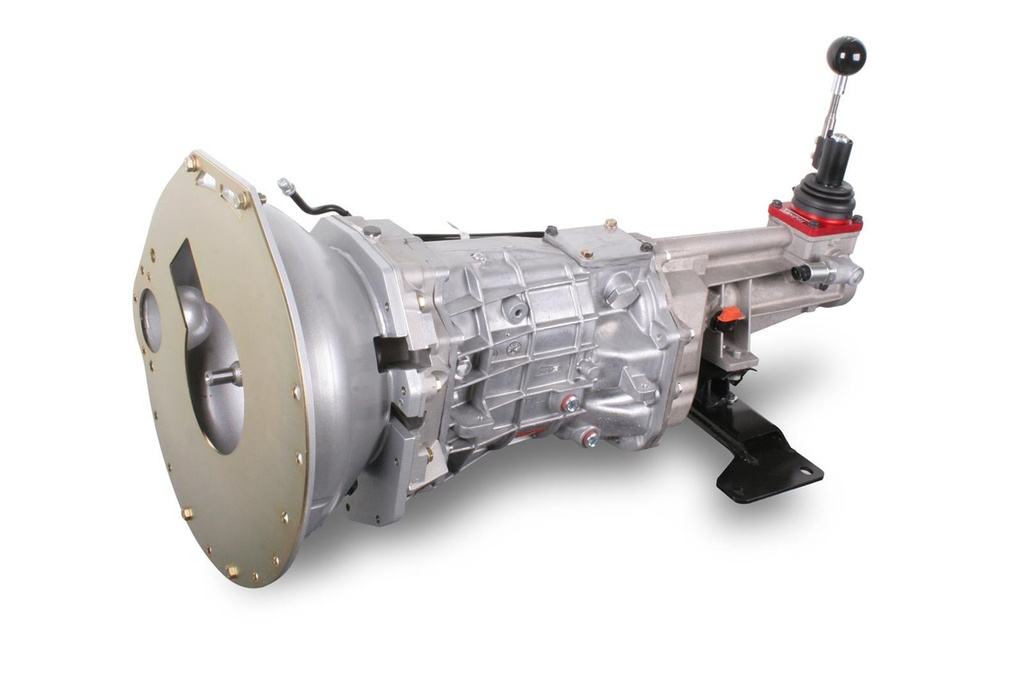

2019+ Ford Mustang Tremec Magnum XL 6-speed transmission kit TUKT19778

New Ford Magnum XL with a gear position sensor

TREMEC is excited to release a new Magnum XL with a gear position sensor for 2019 and up Mustang GT (TUKT19778), the kit will also come with TREMEC’s new Aluminum bellhousing. The new kit will allow our customers to replace the current MT-82 with a Magnum XL and retain the Rev-Matching and back up camera functionality, however the gear position parameters in the ECU need to be updated  (via a RTD device) for the Magnum XL gear position locations, these parameters are available to change in HP Tuners' VCM Suite.

These are expected to be available early July 2026

---

FORD CLOSE RATIO MAGNUM XL CONVERSION KIT

Tremec TUKT16901 T-56 Magnum XL 6-speed manual performance transmission for FORD conversions. Features a close ratio gear set.

Ratios: 1st:2.66, 2nd:1.78, 3rd:1.30, 4th:1.00, 5th:0.80, 6th:0.63

Rated for 700 lb-ft of torque
Input Shaft: 26 Spline
Output Shaft: 31 Spline
Factory TREMEC 1 Year Warranty
Shifter mounted: 34.9" from front of bellhousing
Mount position: 28.1"
Electronic speedometer output

The conversion package includes bellhousing, OE style transmission mount, and new crossmember. This conversion will require changing to a 26 spline clutch and one-piece driveshaft.

Introduced to the marketplace in 2012, the Magnum XL is a continuation of the popular Magnum 6-speed series. Featuring all the most important content from the original Magnum, the XL retains its brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. Currently available for the 2005 and up S197 and S550 Mustang, the Magnum XL was designed specifically to replace the OEM 5 or 6 speed transmission where performance improvements are desired.
