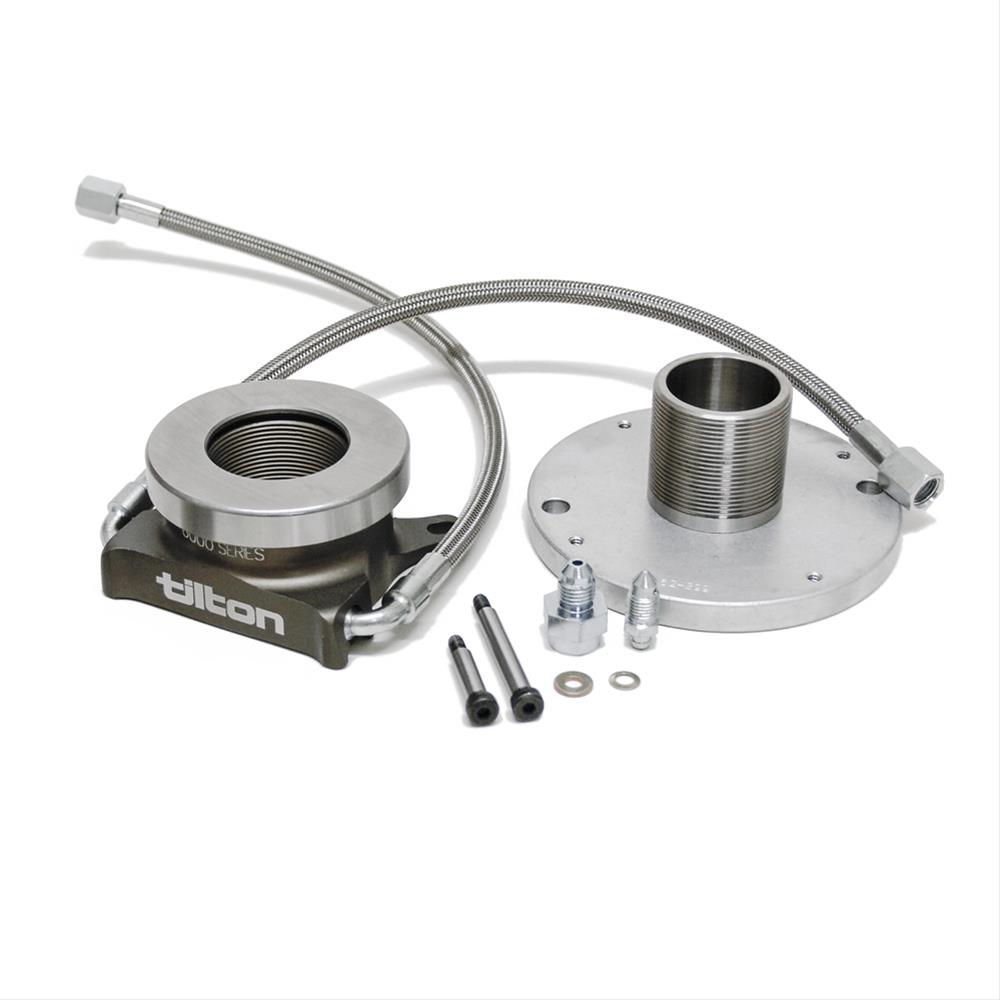

CD009 Hydraulic Clutch Release Bearing Kit (Mazworx Bellhousing only)
Kit includes: Two 12" clutch lines, 3AN bleeder, HRB spacer, HRB spacer hardware, 3AN union fitting.
Choosing the Proper Bearing Face

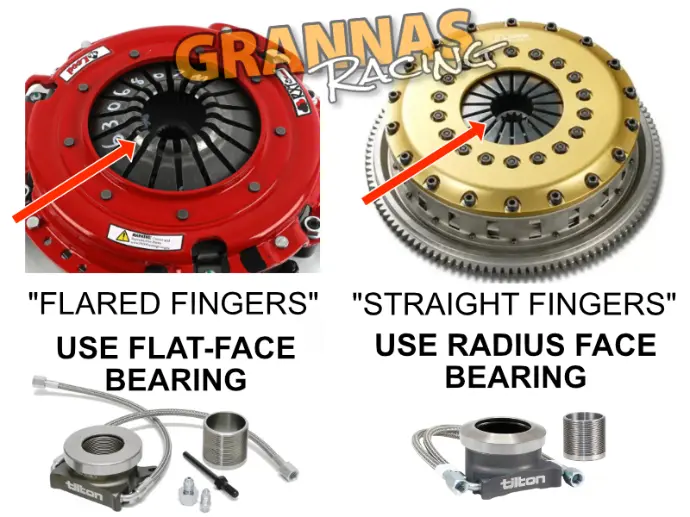

The easiest way to tell what bearing face you need is to look at your clutch pressure plate. The finger design will either be a standard "straight finger" or at the tips you will see a radius/flared type end.
If you have the flared fingers, you will use a flat face bearing. If you have straight fingers then you will use a radius bearing.
There are also smaller versions of the radius type bearings (38mm and 44mm) but they are seldom used. The 72mm flat face and 52-54mm radius face are the most common and fit almost all clutch applications.
Specifications
| Bearing Face | Flat Face (72mm) or Radius Face (52mm) or Small Radius Face (44mm) |
| Spacer Thickness | 1/8" or 1/4" or 1/2" or No Spacer |
