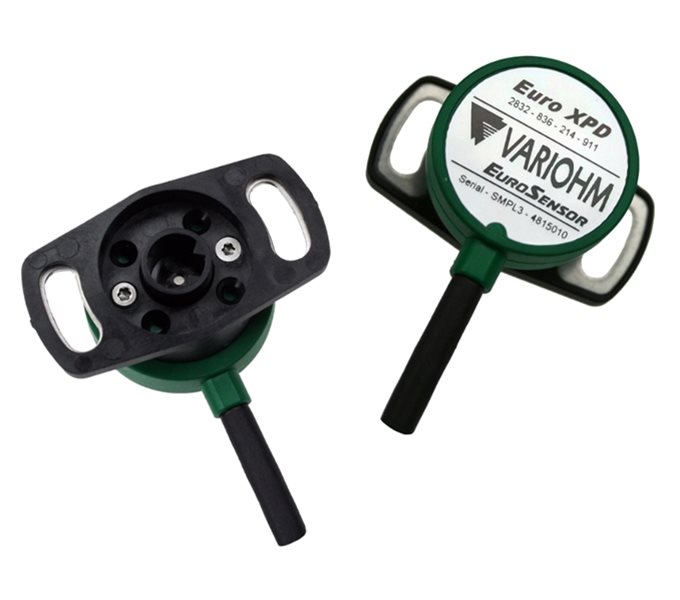

Tilton DBW Non-Contacting Rotary throttle position sensor

Non contacting rotary position sensor.

This version is optimized for Tilton DBW throttle pedal linkage PN 72-792 and PN 72-794

This is the sensor you need for tilton throttle linkage systems with the throttle pedal found on select Tilton 600-Series, 800-Series and 900-Series pedal assemblies.  Throttle linkage systems are available for use with mechanical linkage or Drive-by-Wire (DBW) systems.  The DBW model is designed for use with Penny & Giles TPS280DP or Variohm Euro XPS family of sensors.

Tilton Electronic Throttle Position Sensors

Tilton's electronic throttle position sensors, designed for Tilton's fly by wire mounting bracket kit. These 0.5-4.5v dual channel throttle position sensors are extremely accurate and fully dust / fluid sealed to IP68. The Variohm 'Fly By Wire' throttle mount sensor is an optional component for use with 72-603, 72-615, 72-616, 72-618, 72-803 and 72-903 three pedal floor mount assemblies.

Sensor features and benefits

• Contactless technology, long life & impervious to dither vibration
• Absolute analogue output, no loss of position on power down
• 90° measuring range, optimized for Tilton throttle pedal setup
• Dual outputs, redundant output for safety
• Temperature error less than 50ppm/°C
• Maximizes system accuracy over temp range
• Rugged housing and shaft designs, sealed to IP68
• Suitable for extreme motorsport use

Throttle position sensor spec

• Specification: Dual channel contactless tps
• Operating angle: 90 or 120 degrees
• Output: 0.5 - 4.5V analogue
• Connection: 50cm fly lead with 4 wire core

Connections:

• Red: +VE supply
• Black: -VE supply GND
• Yellow: Ch1 output
• White: Ch2 output
