Multi-Position SHORT THROW Magnum-F Billet Offset shifter

GRANNAS RACING

SHORT THROW OFFSET SHIFTER

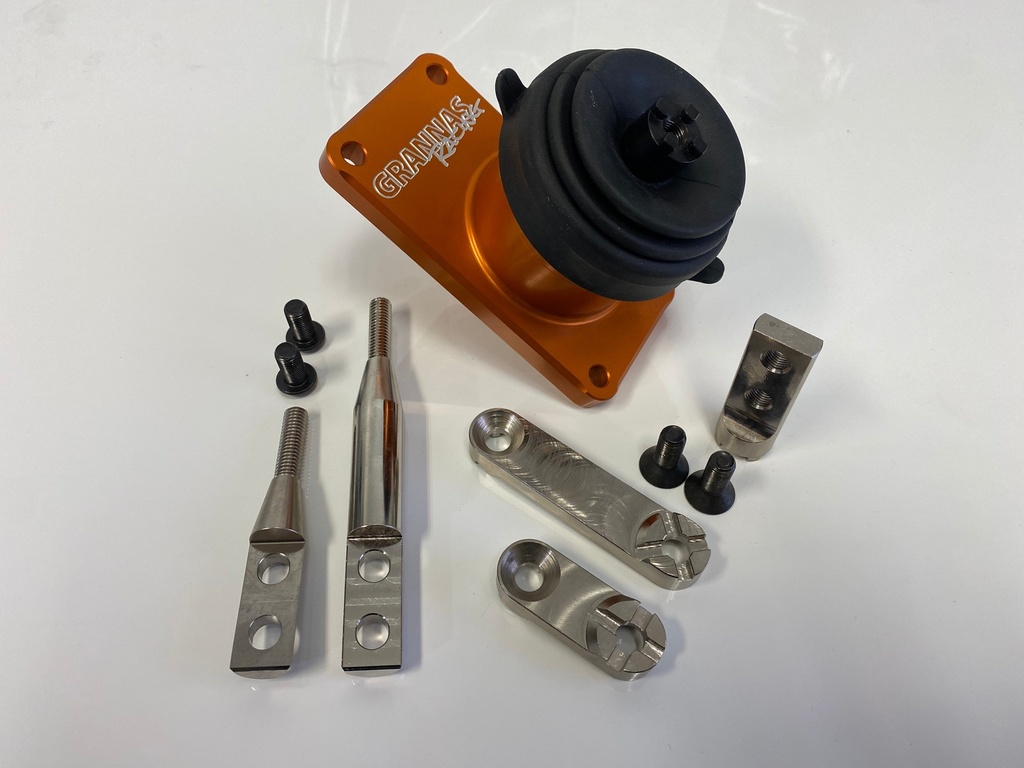

Made in the USA! This Grannas Racing short throw billet offset shifter for the Tremec T56 Magnum-F fits the Magnum-F transmission provides a 25% reduction and shorter throw than OEM.

This shifter also features a design that allows you to put the shifter in 8 different positions, basically every 45 degrees which makes this shifter ultra-flexible to help fit into your chassis. There are four different lengths of offset available as well to help with getting perfect fitment in your transmission tunnel.

Features:

1. 8 different offset positions, at 45 degree increments (0,45,90,135,180,225,270)
2. Four offset sizes: 1", 1.5", 3" or 4"
3. Available with 4" shorty handle or the 6" standard length handle. These handles have 3/8-16 thread.

NOTES:

1. To get the reduction in throw, this shifter does have a .875" taller body than the OEM Magnum-F shifter. So please be aware, this could cause tunnel interference if your tunnel is tight.
2. Older F-body transmissions do not have the detent built into the transmission, their detent is built into the shifter. So if you try to use this shifter on a LS or Borg T56 it will not "spring back" into neutral like it would with a stock Fbody shifter. For that reason, I normally recommend these only for the Magnum-F transmissions.
3. This shifter will NOT fit any other trans other than the Magnum-F (or the older Borg Warner / LS / F-body T56). These only fit 4-bolt shifters, not the larger 6-bolt super magnum transmission.
