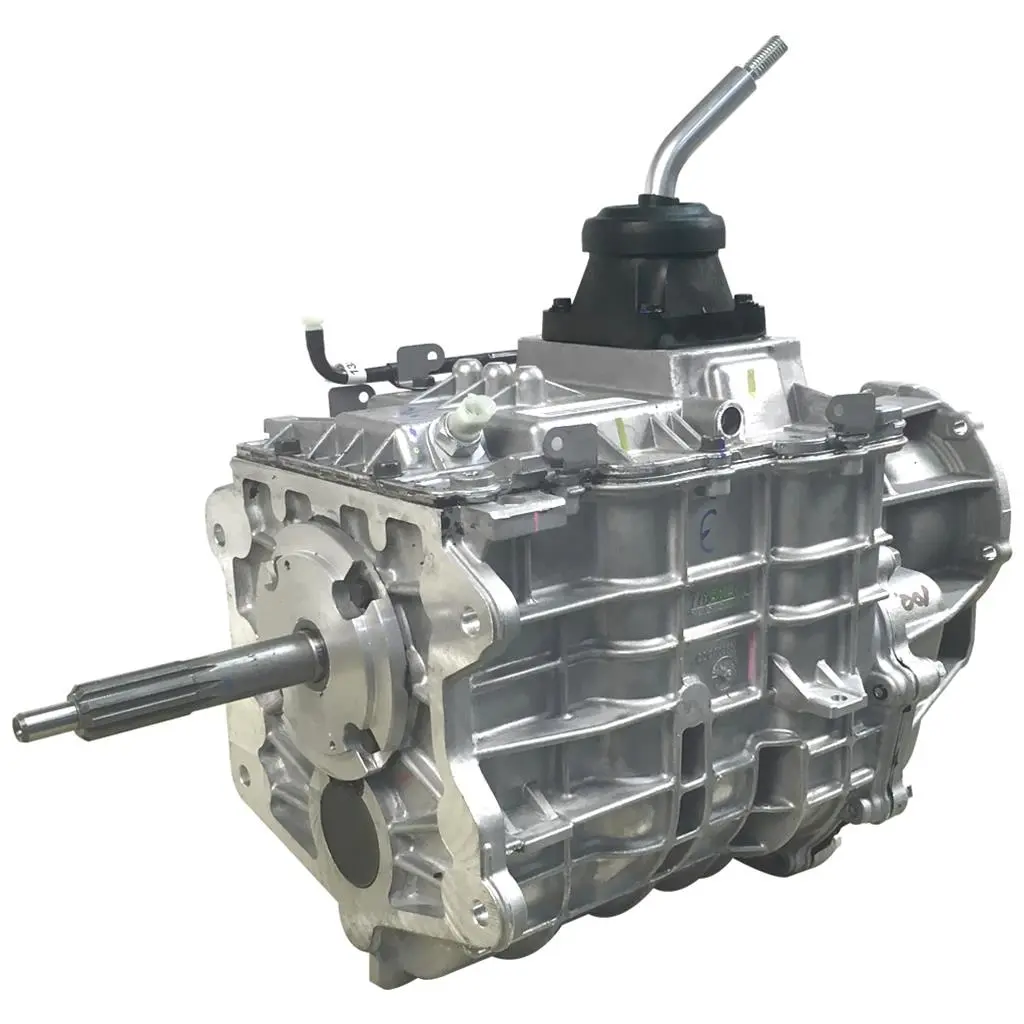

Tremec TR-4050 5-speed overdrive Ford 2WD transmission TDET18576

TREMEC the leading manufacturer of Torque Transfer Solutions announces the release of the 4×2 version of the TR4050 5 speed manual transmission for light and medium duty trucks into the aftermarket.

Similar to the NV4500 2wd. Direct replacement
600 lb/ft of torque capacity
Aggressive 5.81 “Granny” Gear 1st gear but with economical .76 5th gear
High-contact, constant mesh, helical gears for maximum strength
Die-cast aluminum alloy housing saves weight while offering considerable rigidity
Standard right-hand, six-bolt PTO offers the ability to run hydraulic pumps
The multiple rail, internal shifter provides excellent shift feel and performance
Tapered bearing on input, main, and counter shafts provide excellent internal stability
Needle bearings under gears reduce friction and noise output
Fully synchronized
Advanced synchronizer technology promotes smoother shifting and reduced shift effort
5th gear synchronizer mounted to the countershaft to improve NVH in overdrive
3.67 qt oil capacity
Great for towing in 2wd applications – (22,000 lbs gross vehicle weight max)
Gear ratios: 5.81, 2.94, 1.61, 1.00, .76 od. rev 5.69
– 10 spline input shaft
– Torque rating 600lb-ft
– A 6-bolt PTO mount location 6 bolt circle output flange.
– NV4500 bolt pattern

Specs:

Torque Capacity – 600 lb.ft / 813 n/m
Oil Capacity – 3.7 QT / 3.5ltr.
Weighs 164 lbs. / 74kg
19.5″ overall length
.590″ Pilot diameter
5.125″ Index retainer diameter
1.125″ Input shaft diameter, 10-spline, 6.5″ length
