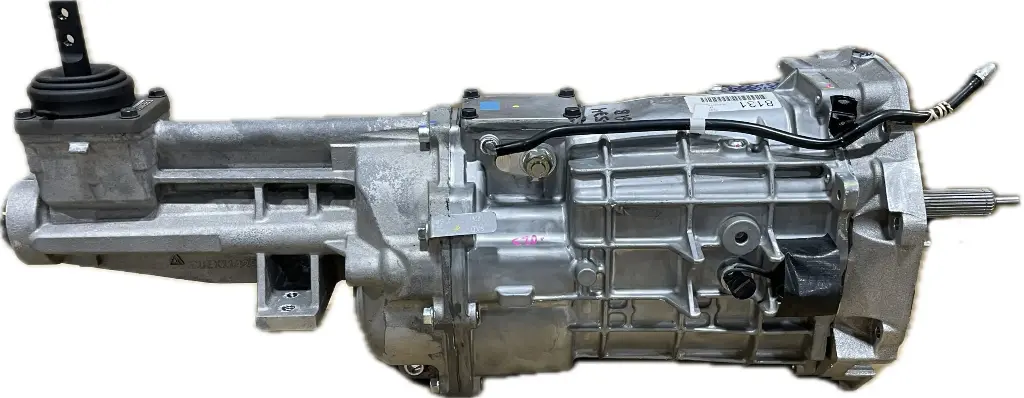

GM Tremec Magnum XL 6-speed transmission TUET18132

GM WIDE RATIO MAGNUM XL

Tremec TUET18132 T-56 Magnum XL 6-speed manual performance transmission for the GM LS engine series. Features a wide ratio gear set.

Ratios: 1st:2.97, 2nd:2.10, 3rd:1.46, 4th:1.00, 5th:0.80, 6th:0.63

Rated for 700 lb-ft of torque
Input Shaft: 26 Spline
Output Shaft: 31 Spline
Factory TREMEC 1 Year Warranty
Shifter mounted: 34.9" from front of bellhousing
Mount position: 28.1"
Electronic speedometer output

Introduced to the marketplace in 2012, the Magnum XL is a continuation of the popular Magnum 6-speed series. Featuring all the most important content from the original Magnum, the XL retains its brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. Initially available for the 2005 and up "S197" Mustang, the Magnum XL was designed specifically to replace the OEM 5 or 6 speed transmission where performance improvements are desired.
